Hello, I am working on creating an HR export having both XML and XSLT file.

Originally replied by Eddie Heinzelman on Jan 29, 2026, 3:01 PM.

Aman,

Would probably need to see your code for this value/field. Does it run without the XSLT? is the token used correct? Is your DataType=String or Number? Troubleshooting xml can take some time.

Originally replied by Aman Gaur on Jan 30, 2026, 11:28 AM.

Hi Eddie,

I am attaching my code for your reference; it would be great if you could go through my code specifically for the field:

<Column Name="LOCATION_CODE" DataType="string" Source="data" Value="position_deptxref"/>.

Output I am getting is in format below:

col1, col2,Col3------,,Division of Transportation-Administration(this is location code),,col n etc

If you could see my XSLT mapping for LOCATION_CODE- Division of Transportation-Administration is mapped to 15001101-00 but not coming on the file.

Originally replied by Aman Gaur on Jan 30, 2026, 11:30 AM.

https://drive.google.com/drive/folders/18QJqjvUccVunBHYv5fEcYo9v0Wprqlll?usp=sharing

link to my XML file

Originally replied by Eddie Heinzelman on Jan 30, 2026, 12:40 PM.

Aman,

Couple issues, but you're going to need to create a new Export Definition.

The segment you have at the top with the <Options> only applies to Benefits Exports. For an HR Export, you should remove all of that so that it just shows the Filename and then directly into your <Columns>

The top of your script should look like this (and then all your fields after that seem fine)-

after I made these changes, the XML runs without producing an error. I didn't run it with the XSLT but the error was generating from the XML.

<?xml version="1.0" encoding="utf-8" ?>

<HRExportConfiguration> <!-- Start HRExportConfiguration Tag -->

<definitions>

<FileName>

<!-- Specify the file naming convention of this export which is provided on the XML Template -->

<!-- Subject to change if file naming convention for test and prod differs -->

<!-- File Name XXX can be updated as per the requirement -->

<Value Value='TEST_CORVEL_' />

<!-- Datetime Stamp. Can be modified as per the requirement -->

<Value Value="transaction_timestamp_datetime" Format="yyyyMMddhhmm"/>

<!-- File extension. XXX can be modified as per the requirement-->

<Value Value='.csv'/>

</FileName>

<!-- Start Columns Tag -->

<Columns>

<!-- ******************Start Employee Demographics Token****************** -->

Originally replied by Aman Gaur on Jan 30, 2026, 12:50 PM.

Hi Eddie,

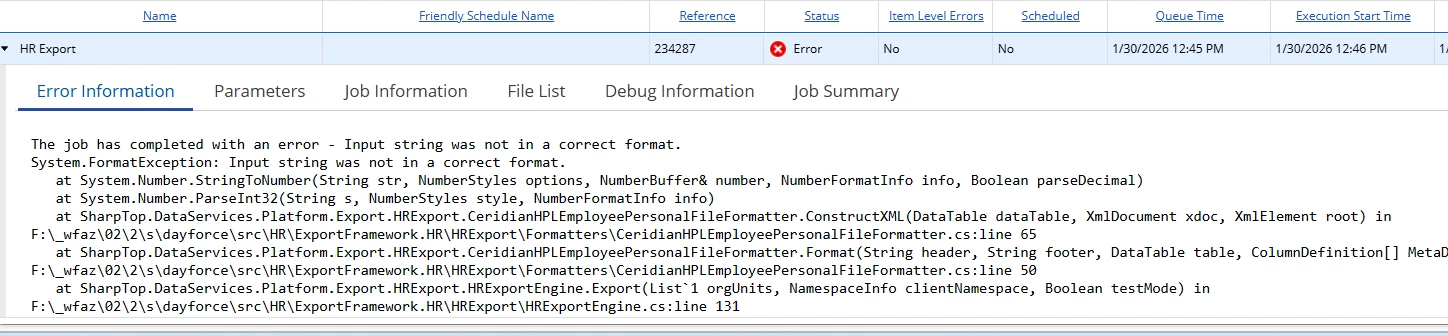

I have tried this also, running XML file as per changes suggested by you is too giving an error.

Not only on this environment but even on all client environments I am getting same error. Even keeping 1 single column in Export is producing same error. I don't understand what's happening.
